LAPAROSCOPY AT A GLANCE
In addition to our existing catalogues, we present our flyer "Laparoscopy at a Glance". This brochure contains a "high-end" laparoscopy system consisting of a selection of devices and a suitable set of instruments and is often used as a basis for developing an individual laparoscopy system with customers. You are also welcome to receive printed editions from us.
UNIVERSAL PUMP OPTIO5
Our new suction and irrigation pump OPTIO5 combines up to 5 applications in one device. In the basic configuration, you will get the pump with a license for laparoscopy and another application of your choice. The powerful universal pump will be operated intuitively via a high-resolution color touchscreen.
FLUORESCENCE IMAGING
Discover the impressive world of fluorescence imaging with the multifunctional system VISO NIR. Choose a full HD or 4K camera in combination with a laser light source of the latest technology and the corresponding endoscopes. The system can work in both: fluorescence and white light mode. The system is supplemented by a wide range of camera heads for different applications.
NEXO-Compact Unit
The NEXO-Compact Unit combines 3 high-grade units (camera, light, capture) for professional use in one small and compact housing with touchscreen display. The camera convinces by its brilliant and sharp HD picture, completed by the excellent illuminating power of the LED light source (comparable to 180W Xenon). The device is equipped with a USB port, that offers the possibility for image capture in HD quality.
Our NEXO unit offers an extremely attractive price / performance ratio. See for yourself !
ISO-Focal zoom adapter for 4K camera systems
In order to cover the most diverse areas of endoscopic applications in connection with 4K camera systems, we offer you the appropriate ISO-FOCAL zoom (f = 16-32mm) adapter.
This remains in focus while you change the zoom and thus the focal length.
TEKNO CAM 4300 UHD
With the TeknoCam 4300 UHD (tk 754-2600 UHD) we are presenting the most recent member of our endoscopic camera series. The latest 4K technology opens the impressive world of Ultra High Defi nition (UHD). In comparison to the already established Full HD-quality, the UHD provides a 4-times better resolution. Due to this latest technology the camera characterizes itself with natural shades of colour and colourbrilliancy as well as extraordinary contrasts and richness of detail. The four different camera head buttons provide a direct approach to all important functions. With the On Screen Menu the functions of the camera head buttons may be individually selected.

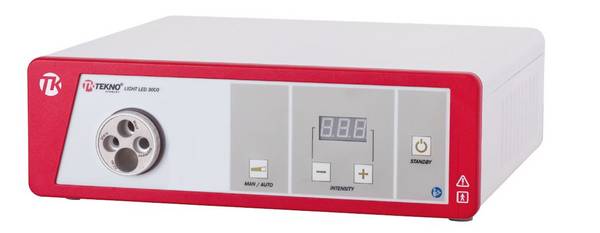

300W LED light source with multifunction adapter
By developing LED light sources Tekno-Medical was once more the pioneer of a new technology for the demanding operator in the OR. A rotatable adapter enables the connection of different light guides of several brands.
ARTHROSCOPY SHAVER TM940
The new shaver system TM940 has been designed for surgical procedures in small and large joints. The unit is constructed explicit and user-friendly, which allows to control its functions via control unit, handpiece or footswitch. Nine oscillation modes and an optional module to show signifi cant parameters on the monitor, complete the shaver system TM940 in its operator convenience.
The autoclavable handpiece is equipped with 2 double allocatable buttons. Following functions can be controlled via the handpiece: direction, oscillation mode, start/stop rotation and open window calibration*. Furthermore the ergonomic handpiece is much lighter than its previous versions and offers more comfort to the user. The non-slip and sealed foot pedal can control the same functions like the handpiece and can additionally control the speed.
*This feature allows to set up a desired position of the blade and it will always return to this position after rotation.
TEKNO® TOM 500
New HF-unit with touch screen
The TEKNO TOM 500 belongs to the latest generation of Tekno-Medical HF-units. It fits for all disciplines from endoscopic to open surgery. With the optionally built–in argon gas beamer it leaves nothing to be desired. The 7” touch screen and the user-friendly software are simple and intuitive to use.
Two independently working micro-processors continuously control all security relevant data and thus measure and dose the supplied power in a safe and dependable way.
Small HF Units
The new Tekno Tom Series 80,100 and 141DPS is composed of intuitive electrosurgical units with high performances. The series convince with its user friendly design which allows easy working and clear legibility of the displays.
The units have been developed according to the latest electronic technologies and are completely microprocessor controlled which guarantees a maximum safety. Our new series comply with international safety standards and can be used in several medical areas.
TOM80 and TOM141DPS perform in monopolar and bipolar currents The TOM100 is especially made for office hysteroscopy field and works solely in bipolar. All units can be controlled via foot switches and hand pieces.
Smoke evacuation systems
Units for smoke evacuation are necessary when the surgeon’s field of view is limited by smoke due to the use of HF-units. Tekno-Medical offers units which can be combined with the insufflator to balance pressure decrease in the pneumo-peritoneum. In open surgery, smoke is evacuated to minimize smell in the breathing air.
HoLEP instruments
Tekno-Medical offers a selected set of instruments for the endoscopic enucleation of the prostate, which can be used with urology morcellators and laser units.
Bipolar resectoscopy
Effectiveness often starts with a good idea. The application of bipolar instruments not only reduces the operational related stress and negative side effects for the patient, but also the retention period in the hospital and thus costs. Tekno-Medical is one of the few suppliers worldwide that can offer a safe and reliable instrument / unit system for bipolar TUR.
OFFICE HYSTEROSCOPY SET
To withstand today's advanced technology, Tekno-Medical now offers you an Office Hysteroscopy Standard Set. This modern set includes an instrument set "Made in Germany", a brilliant HD video system and a powerful HF generator.
XL Hegar dilators
Discover our uterine dilators, which are particularly suitable for
overweight patients due to their special length of 250mm
(approx. 70mm longer than standard dilators).
VASECTOMY SET
Due to high demand, Tekno-Medical offers you a standard set of instruments for the ‚non-scalpel‘ vasectomy. It can be used especially for male sterilization.
Basket for resectoscopy set
ALL IN ONE
Due to the specially placed silicone holders, a complete resectoscopy set can be stored in just one basket. This saves time in clinical workaday life due to a clear and faster allocation. Thanks to the fl exible and universal holders, the basket can be used for monopolar and bipolar sets in different sizes.
learn more
TRISTAR container system
Discover our TRISTAR container system. This is characterized by the latest filter technology, in which you can choose between PTFE and barrier filters as well as valve filter cassettes. Our TRISTAR system impresses with a variety of possible combinations and is extremely flexible in practice. For example, when changing the filter systems, it is possible to replace the individual filter cassettes in the lid without complete new lids and bottoms.
Additional advantages:
- Integrated safety cover of the perforation field
- PTFE permanent filter cassette suitable for approximately 5200 sterilization cycles
- Almost maintenance-free barrier filter cassettes
- TRISTAR container lids are compatible with existingcontainer bottoms of the E series
Cranial Stabilization System
The newly developed head stabilization and retraction system has been specially designed to meet the needs of the user. The basic set is available wirh a skull clamp or neck support and can be connected to a complete attachment of holding system for the adaption of accessories (Viridis, Leyla, ...). This makes the system movable in all directions and height-adjudtable. Four adaption interfaces for the attachment of target devices as well as further connection possibilities for stereotactic procedures are available. A wide range of accessories is additionally available as modular configuration. Everything from one source, best quality and made in Germany.
MOBI 2 - Power Tools
The Power Tools series „MOBI 2“ by Tekno-Medical guarantees a high performing motor system which will inspire you. The high quality processing of exclusive material in combination with the user-friendly design assures comfortable and precise working. The intelligent positioning of the control elements allows an ergonomic one-hand operation.
Construction and design are made for the exigent everyday business of a hospital and ensure high reliability.
The TEKNO-MOBI 2 System is your reliable partner in the field of orthopedics and trauma surgery in the daily business of a hospital.
Lightweight Needle Holder
Our new Tekno Lightweight Needleholder convinces with his new design and handling. The ergonomic handles made of anodized aluminium allows the operator a fatigue-proof working.
VATS
Tekno-Medical present a comprehensive range of instruments for the Thoracic Surgeon to assist in Video Assisted Thoracoscopic Surgery "VATS".VATS minimises open Thoracotomy procedures reducing post operative patient care.
Procedures of VATS includes:
- Pleurectomy
- Lung and tumor biopsy
- Partiel lobectomy
- Thymectomy
- Sympathectomy
- Pulmonary and Osephageal resection
Laser marking of Tekno-Medical products
With the successful introduction of the ultrashort pulse laser, Tekno-Medical is setting trendsetting impulses for the future.
Compared to traditional marking by chemical etching, laser marking is characterized by the possibility of marking an individual matrix code, as well as high-contrast and abrasion-resistant marking.
The Unique Device Identification (UDI) required by the FDA (Food and Drug Association) within the framework of the new guidelines for the labelling of medical devices can be implemented using the matrix code.
If up to now only special markings have been marked by laser, the laser marking is currently transferred to the control mode.
Almost all metals can be processed with the laser and thanks to the ultra-short pulse laser technology, there is no susceptibility to corrosion.
The surfaces are undamaged and very small line widths can be achieved.
